With the continuous development of automotive intelligence, diagnostic equipment used in vehicle repair, inspection, and after-sales services has become increasingly sophisticated. From traditional repair tools to intelligent fault diagnostic devices, oscilloscopes, battery testing equipment, programming devices, and other advanced tools, automotive technicians need to carry a large number of different types of equipment every day. Without a suitable tool case, equipment can easily suffer from collisions and damage, which may also reduce maintenance efficiency. The automotive diagnostic equipment tool case solution is mainly designed for automotive repair shops, 4S dealerships, racing teams, mobile repair service providers, and vehicle inspection organizations. Through reasonable internal structure design, protective materials, and portable transportation solutions, diagnostic equipment can be stored, moved, and used more safely and efficiently.
A professional tool case is not only used for simple storage but also needs to be customized according to equipment size, working environment, and transportation requirements to provide more reliable protection for expensive diagnostic instruments. Automotive diagnostic equipment usually includes computer terminals, diagnostic units, wiring harnesses, sensors, testing probes, power supply devices, and other accessories. Different devices have different requirements for shock resistance, dust protection, moisture resistance, and quick access. Therefore, choosing a suitable matching tool case can reduce equipment wear, improve technician efficiency, and enhance the professional image of the company.
| Automotive Diagnostic Equipment | Matching Tool Case Requirements |
| Vehicle Fault Diagnostic Scanner | Shockproof, drop-resistant, quick access |
| ECU Programming Equipment | Anti-static, moisture-resistant, collision protection |
| Battery Testing Equipment | Secure fixing, classified storage |
| Mobile Repair Equipment | Lightweight transportation, durable protection |
Design Requirements for Automotive Diagnostic Equipment Tool Cases
Planning Internal Space According to Equipment Types
Automotive diagnostic equipment comes in many types with significant differences in size. Ordinary tool cases are often unable to meet the storage requirements of all equipment. Therefore, when designing a matching tool case, it is necessary to understand the equipment dimensions, quantities, and commonly used accessories in advance and plan the internal space properly. For example, the diagnostic unit usually requires an independent fixed area to prevent movement during transportation. Computers and tablet display devices need additional protective layers to prevent screen damage caused by impacts. Small accessories such as data cables, adapters, and test clips require separate storage areas to avoid difficulty finding them during use. Customized tool cases can be designed according to the customer’s actual equipment list, using foam inserts, EVA molded trays, or modular dividers, ensuring every tool has its own fixed position. This not only improves tool management efficiency but also allows technicians to quickly access equipment during work.
Meeting Protection Requirements in Mobile Repair Environments

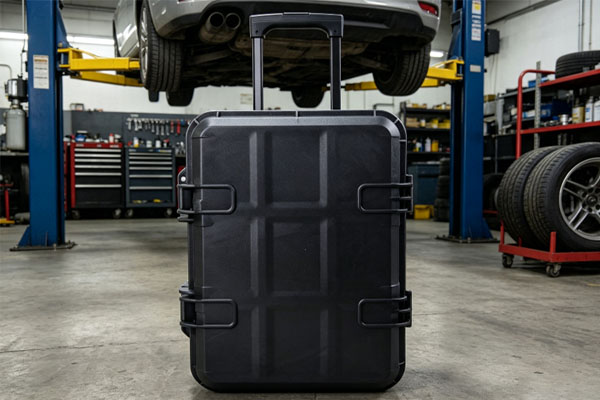

Automotive repair services are becoming increasingly mobile, and many technicians need to carry diagnostic equipment to customer locations. Therefore, tool cases must not only store equipment but also adapt to different transportation environments. During vehicle transportation, outdoor repair work, or long-distance logistics, tool cases may be exposed to vibration, impact, dust, and moisture. If the protection performance is insufficient, precision electronic equipment inside may malfunction, increasing repair costs. Automotive diagnostic equipment tool cases are usually manufactured using high-strength PP safety cases or aluminum alloy cases. Combined with sealing designs and cushioning structures, these materials improve overall protection performance and help keep equipment safe in complex environments.
Balancing Convenience and Corporate Image
Professional tool cases are not only equipment protection products but also important tools for demonstrating the professionalism of repair companies. A well-designed and clean-looking tool case can help customers recognize the standardized management of a repair team. Some companies customize tool cases according to their brand requirements by adding logo markings, customized colors, and functional designs. This allows the tool case to become a mobile brand display carrier during service operations.
Production Process of Automotive Diagnostic Equipment Tool Cases
Requirement Communication and Structural Design
Before manufacturing automotive diagnostic equipment tool cases, design planning needs to be carried out based on equipment information provided by customers, including equipment dimensions, weight, usage frequency, and transportation methods. Designers determine the case size, opening method, internal fixing solution, and additional functions according to actual usage conditions. For example, equipment that is frequently moved can be designed with pull handles and wheels, while equipment stored in repair workshops for long periods can focus more on improving classification and management functions. Through detailed communication in the early stage, potential inconveniences during later use can be reduced, making the tool case better match real working requirements.
Case Manufacturing and Internal Protection Processing
During tool case manufacturing, suitable materials need to be selected according to the working environment. PP safety cases feature lightweight construction, impact resistance, and waterproof performance, making them suitable for mobile repair applications. Aluminum alloy cases provide a professional appearance and stable structure, making them suitable for protecting high-value equipment. The internal protective structure usually uses high-density foam, EVA foam, or customized liners. These materials are precisely cut according to the shape of the equipment, ensuring that devices remain securely fixed inside the case.
| Tool Case Structure | Main Function |
| External Case Body | Provides overall protection |
| Sealing Structure | Prevents dust and moisture from entering |
| EVA Inner Lining | Fixes equipment and reduces impact |
| Classified Dividers | Improves tool management efficiency |
Quality Inspection and Delivery
After the tool case production is completed, appearance inspection, structural inspection, and usage testing are required to ensure that the case strength, opening and closing functions, and internal fixing performance meet requirements. For high-value products such as automotive diagnostic equipment, tool case quality directly affects equipment safety. Therefore, strict control is required over material selection, manufacturing processes, and finished product inspection.
Application Scenarios and Technical Features of Automotive Diagnostic Tool Cases
Application Solution for Automotive Repair Companies
4S dealerships and automotive repair centers use large amounts of testing equipment every day. Tool cases help repair technicians establish standardized equipment management methods. Through customized internal layouts, diagnostic computers, testing devices, wiring harnesses, and auxiliary tools can be centrally managed, reducing equipment scattering and loss while improving repair efficiency.
Application Solution for Mobile Inspection and Roadside Assistance
Roadside assistance technicians often need to carry equipment to different locations, so tool cases must provide lightweight design, protection, and fast operation features. During vehicle transportation, the case needs to withstand continuous vibration, while the internal structure must ensure that equipment is not exposed to severe impacts. At the same time, the tool case should allow technicians to open it quickly and complete vehicle inspections within a short time.
Application Solution for Automotive Training and Educational Equipment
Automotive vocational schools and technical colleges also use diagnostic equipment for teaching purposes. For educational environments, tool cases can be designed with shared-use structures, allowing different types of testing equipment to be stored separately. A reasonable tool management method helps students develop standardized operating habits and also makes equipment maintenance and management easier for schools.
Frequently Asked Questions
Q: Can automotive diagnostic equipment tool cases be customized according to equipment size?
A: Yes. TB Toolbox can design internal structures based on customer-provided equipment models, dimensions, and usage requirements, including foam liners, divider layouts, and external case dimensions, providing better equipment fixation.
Q: Are the tool cases suitable for long-term transportation?
A: Yes. According to different transportation environments, PP safety cases or aluminum alloy cases can be selected, with additional shockproof, dustproof, and moisture-resistant designs to improve transportation safety.
Q: Is small-batch customization supported?
A: Yes. Different companies have different equipment protection requirements. TB Toolbox can provide flexible customization services according to actual needs.
Automotive diagnostic equipment is relatively expensive and can easily be affected by collisions, dust, and transportation vibration during daily use. A suitable tool case can make equipment management more convenient while reducing repair and replacement costs. TB Toolbox has a professional production team and complete manufacturing capabilities. From PP safety case and aluminum alloy case design to internal structure customization, solutions can be adjusted according to customer requirements. Whether for automotive repair companies, mobile inspection teams, or educational institutions, customers can obtain tool case solutions that match their specific application scenarios.
If you are looking for a professional tool case suitable for automotive diagnostic equipment, please contact TB Toolbox. We will provide customized recommendations based on your equipment requirements and offer safer and more reliable protection solutions for precision equipment transportation and daily use.
